      SWAT CAM - Case IH Patriot Sprayer Installation Photos

      Reference photos for SWAT CAM mounting locations on various models and boom widths.

      NOTE: Boom configurations may differ depending on series, model year, boom width, etc.

      Case IH Patriot 3230 - 100 ft Boom

      Mount Kit: UB-2.0

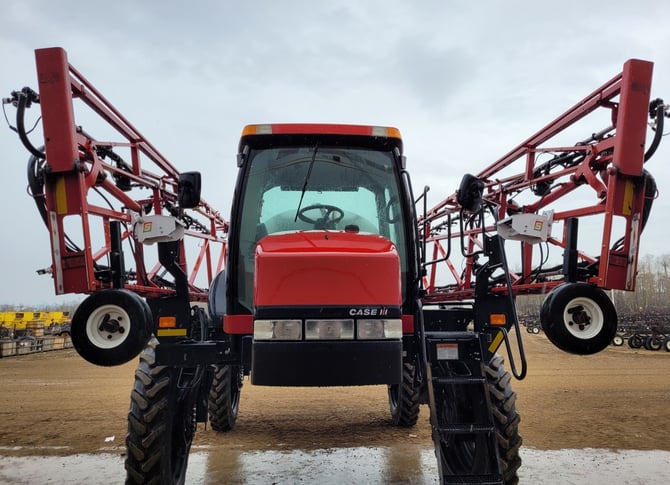

      CIH 3230_1

      CIH 3230_2

      Case IH Patriot 3340 / 4440 - 120 ft Boom

      Mount Kit: UB-2.0

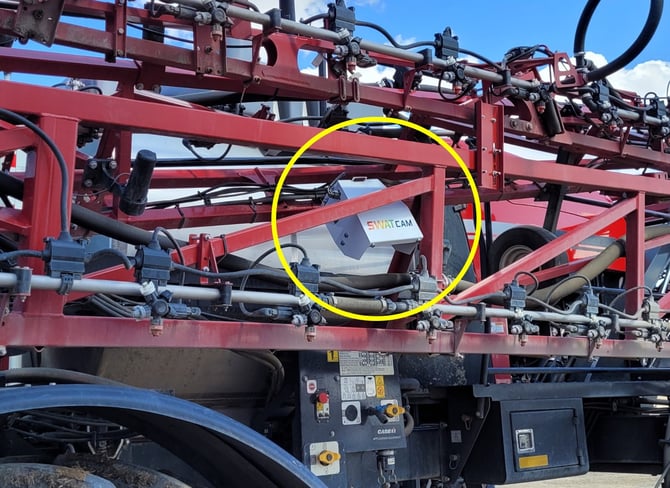

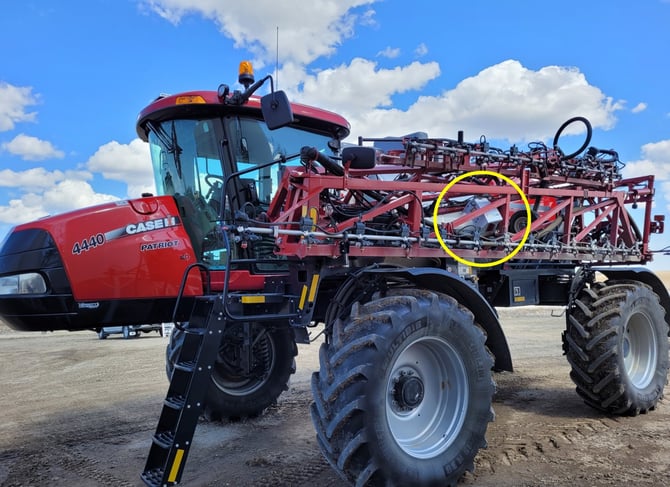

      CIH 4440-120_1

      CIH 4440-120_2

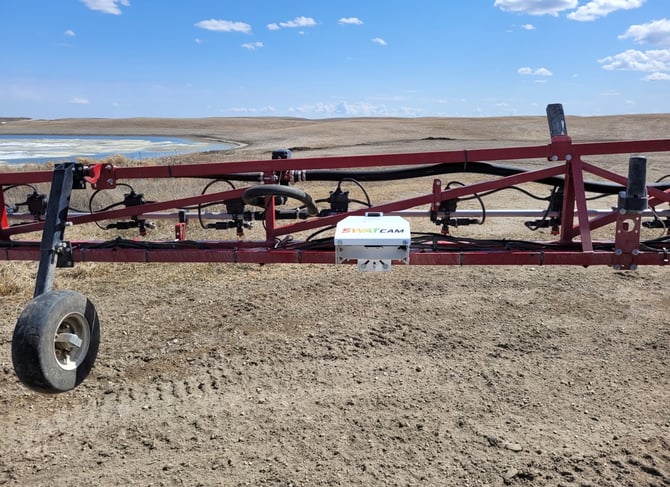

      CIH 4440-120_3

      CIH 4440-120_4

      Case IH Patriot 4440 - 135 ft Boom

      Mount Kit: MC-2.5

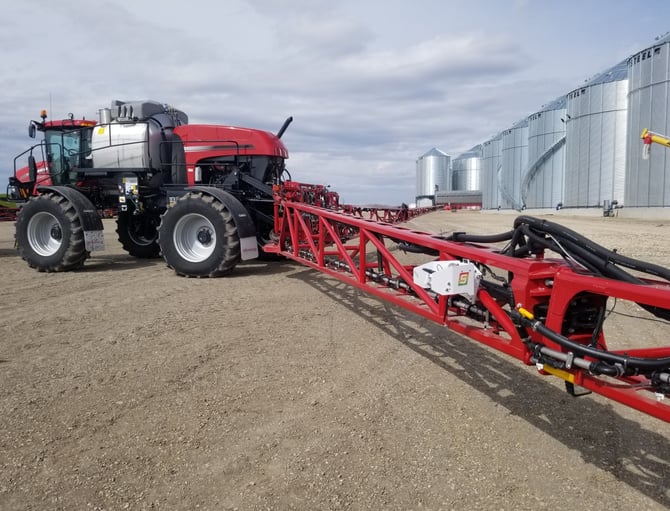

      CIH 4440-135_1

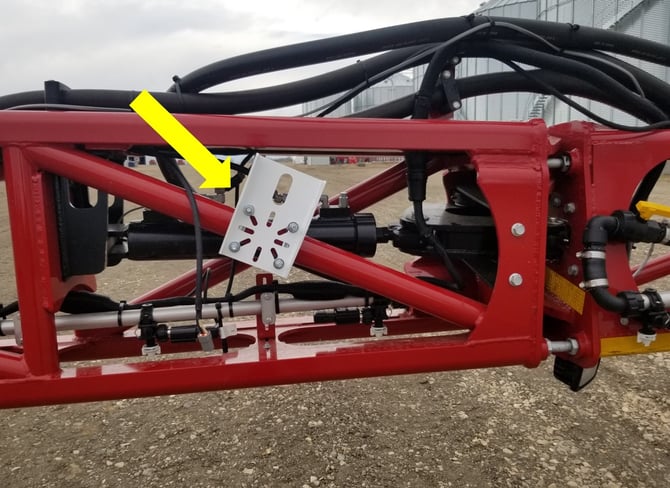

      CIH 4440-135_2

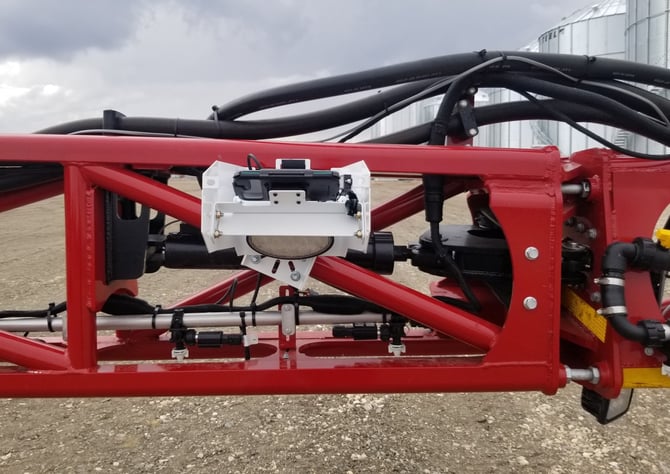

      CIH 4440-135_3

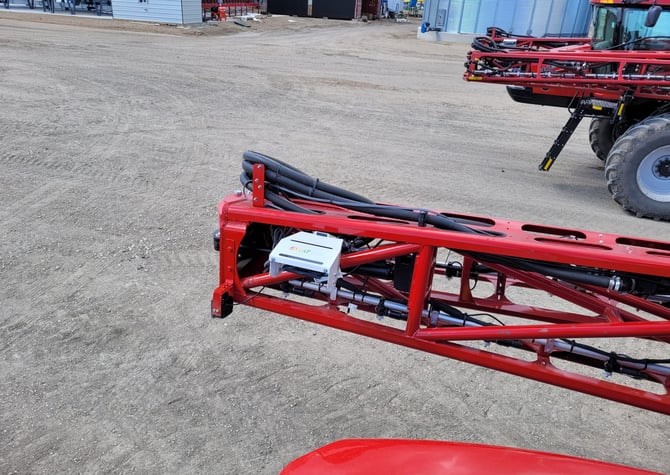

      CIH 4440-135_4
